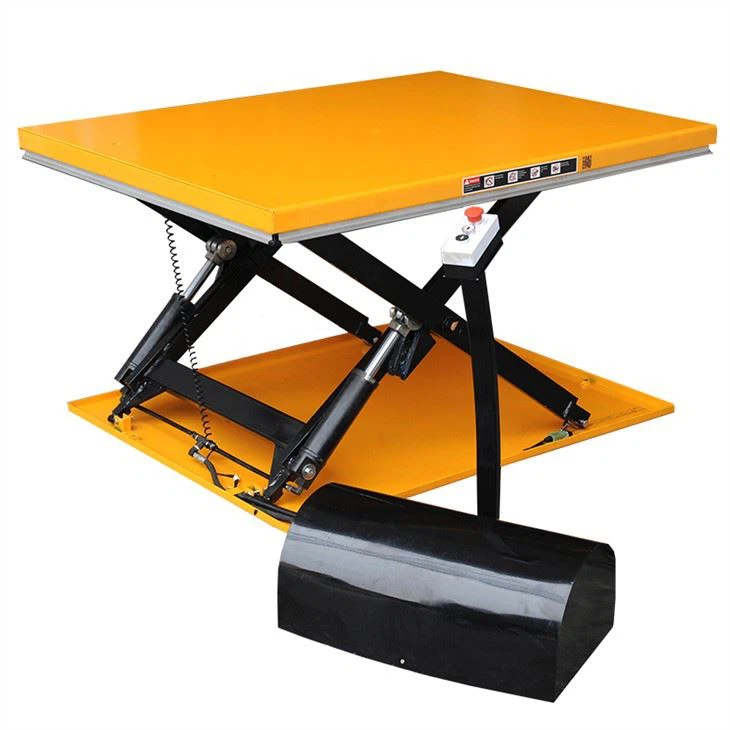

Low Profile Hydraulic Lift Table is mainly used in truck lifting platform, freight lifting platform, high-altitude installation, maintenance and other operations, logistics center cargo transportation, construction and decoration, production line, maintenance and other line height differences.
Model | Loading Capacity(kg) | Platform Size | Base Size | Self Height (mm) | Max Platform Height (mm) | Lifting Time(s) | Power | Net Weight(kg) |
LP1001 | 1000 | 1450x1140 | 1325x1074 | 85 | 860 | 25 | as per your local standard | 357 |
LP1002 | 1000 | 1600x1140 | 1325x1074 | 85 | 860 | 25 | 364 | |
LP1003 | 1000 | 1450x800 | 1325x734 | 85 | 860 | 25 | 326 | |
LP1004 | 1000 | 1600x800 | 1325x734 | 85 | 860 | 25 | 332 | |
LP1005 | 1000 | 1600x1000 | 1325x734 | 85 | 860 | 25 | 352 | |
LP1501 | 1500 | 1600x800 | 1325x734 | 105 | 870 | 30 | 302 | |
LP1502 | 1500 | 1600x1000 | 1325x734 | 105 | 870 | 30 | 401 | |
LP1503 | 1500 | 1600x1200 | 1325x734 | 105 | 870 | 30 | 415 | |
LP2001 | 2000 | 1600x1200 | 1427x1114 | 105 | 870 | 35 | 419 | |
LP2002 | 2000 | 1600x1000 | 1427x734 | 105 | 870 | 35 | 405 |
Product Details
Features & Advantages:
● Ultra-low platform, no need to build underground pits for installation; heavy-duty design, ultra-long table;
● Comply with all European safety standards, including EN1570:1999 safety standard;
● High-quality AC power supply components, IP54 protection grade; power supply: AC 380V/50HZ/3 phases;
● 24V low voltage control box with up and down buttons and instant stop buttons;
● Anti-overload safety valve and pressure-compensated flow valve can precisely control the descending speed;
● There is a safety device under the table to ensure that the table stops falling when it encounters an obstacle;
● Heavy duty oil cylinder with return device and check valve to prevent the table from falling when the oil pipe bursts;
● The linkage part is equipped with a self-lubricating guide ring to reduce the wear between parts;
● Detachable lifting ring is convenient for installation and maintenance on the countertop;
● Equipped with safety wedges for maintenance.
Real Order
